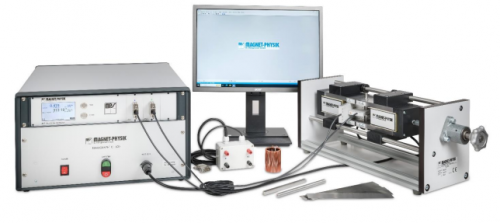

Special features of the REMAGRAPH® C - 600:

• Automatic measurement of the static hysteresis loops of soft magnetic materials

• Measurements on ring specimens

• Measurements on bars or strips in a permeameter yoke

• Precise measurement of the field strength H with a potential coil directly on the specimen surface

• Measuring Methods

Depending on the model and accessories of the REMAGRAPH  C, the following measurements are possible:

• Measurements on ring specimens with windings, which are wound on the specimens

• Measurements on bars or strips with the MJR 5 permeameter yoke, potential coil and surrounding coils

• Measurements with an Epstein frame on electrical steel strips

• Measurements on the surface of large sheet specimens or on massive parts with an attachment probe

• Measurements of small specimens in an open magnetic circuit with an open field coil and moment coil

•  Ring Measurements

Specimens

Rings (Rowland rings) or other specimen shapes with a closed

magnetic path and constant cross-sectional area

Field strength H

Typically up to 10 kA/m (higher field strength are possible, if  there

is enough winding space and heating of the specimen is avoided)

Standards

IEC 60404-4, DIN EN 60404-4, ASTM A773/A773M

• Combined Instruments

REMAGRAPH® - REMACOMP® - COMBINATIONS

REMAGRAPH®-REMACOMP® combinations allow testing soft magnetic materials under DC and AC excitation with one instrument.

The low power REMAGRAPH® - REMACOMP® - Combination C - 803 is especially suitable for measuring ring specimens of Fe-Ni or other magnetically very soft alloys.

The REMAGRAPH® - REMACOMP® - Combination C - 1207 allows, additionally to AC measurements, also DC measurements on electrical steel. Epstein-Frames and Single Sheet or Strip Testers can be used as accessories. For precision DC measurements using an Epstein-Frame, a REMAGRAPH® C - 641 is recommended.
